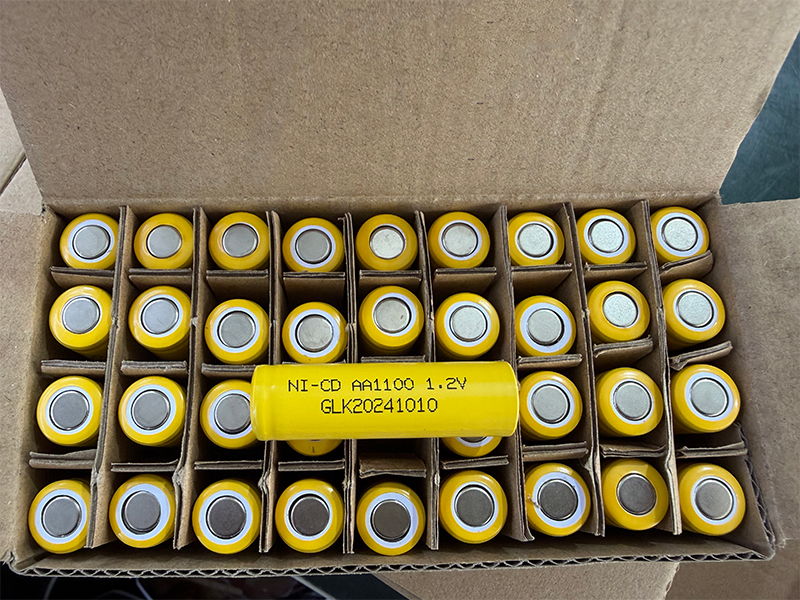

镍镉电池 Ni-Cd 49AA1100mAh 1.2V
电性能标准 Specifications of single cell：
额定电压 Nominal Voltage： 1.2V
额定容量 Nominal Capacity： 1100mAh
参考内阻 IR： ≤35mΩ
标准充电 Standard Charge： 110mA× 16h
快速充电 Quick Charge： 550mA（-△V＝10mV 或 150 分钟时终止充电 or after 150 minutes,
whichever comes first. ）
标准放电 Standard Discharge：放电电流 Discharge current 220 mA，放电终止电压 Discharge cut-off
voltage： 1.0V
至大放电 Maximum discharge： 3C， 放电终止电压 Discharge cut-off voltage： 0.8V
外型 Dimension with tube：
D 14.5mm× H 49mm d 5.5mm
Hot-Sales Huilong High Power Type Ni-CD Cells
Model
型号 | IR
内阻 (mΩ) | Weight重量(g) | Max.CHGR Current 峰值连续充电电流(C) | Max.Dis-CHGR Current
峰值 连续放电电流（C） |
| AAA300F | 45 | 9 | 1 | 3 |
| AAA300LT | 45 | 9 | 0.5 | 1 |
| AAA350F | 42 |
| 1 | 3 |
| AAA350T5 | 45 |
| 0.5 | 1 |
|
|
|
|
|
| 1/2AA300F | 50 | 9.4 | 1 | 3 |
| 2/3AA300F | 45 | 9.4 | 1 | 3 |
| 2/3AA400F | 42 | 11 | 1 | 3 |
| AA300F | 45 | 12.7 | 1 | 3 |
| AA400F | 45 |
| 1 | 3 |
| AA500F | 38 |
| 1 | 3 |
| AA600F | 38 | 16.4 | 0.5 | 3 |
| AA600T5 | 38 | 16.5 | 0.5 | 1 |
| AA600LT | 38 | 16.5 | 0.5 | 1 |
| AA650T5 | 37 | 17 | 1 | 1 |
| AA700 | 37 | 17 | 1 | 1 |
| AA700P3 | 16 | 17.7 | 1 | 5 |
| AA800 | 33 | 19 | 1 | 3 |
| AA800P3 | 25 |
| 0.5 | 5 |
| AA800T5 | 35 | 19.5 | 1 | 1 |
| AA800T7 | 33 | 19.5 | 0.5 | 0.5 |
| AA900 | 32 | 19.5 | 0.5 | 3 |
| AA900T5 | 32 | 20 | 0.5 | 0.5 |
| AA950T5 | 32 | 20.5 | 0.5 | 0.5 |
| AA1000 | 32 | 20 | 0.5 | 3 |
| AA1000T5 | 30 | 20.7 | 0.5 | 0.5 |
| AA1100 | 35 | 21.4 | 0.5 | 3 |
| AA1100T5 | 30 | 21.9 | 0.3 | 0.5 |
|
|
|
|
|
| 2/3A600 | 37 |
| 1 | 3 |
| 2/3A700 | 35 | 16.5 | 1 | 3 |
| 4/5A1000 | 32 |
| 0.5 | 3 |
| 4/5A1200 | 32 | 23.4 | 0.5 | 3 |
| A1200 | 32 | 28 | 0.5 | 1 |
| A1300 | 32 | 28.8 | 0.5 | 1 |
| A1300T5 | 32 |
| 0.5 | 1 |
| A1400 | 30 | 29.1 | 0.5 | 3 |
| A1400T5 | 32 | 29 | 0.3 | 0.5 |
| A1500 | 30 |
| 0.5 | 1 |
| A1500T5 | 30 |
| 0.3 | 0.5 |
|
|
|
|
|
| 1/2SC800F | 45 | 24 | 1 | 3 |
| 4/5SC1000F | 35 |
| 1 | 3 |
| 4/5SC1000P | 12 |
| 1 | 10 |
| 4/5SC1200P | 12 | 31.5 | 1 | 10 |
| 4/5SC1500P | 12 |
| 1 | 10 |
| SC1000 | 35 | 34.5 | 1 | 3 |
| SC1000P | 12 | 34.5 | 1 | 10 |
| SC1200F | 30 | 35.5 | 1 | 3 |
| SC1200TSP | 30 | 35.5 | 0.5 | 1 |
| SC1200P8 | 12 | 35.7 | 1 | 10 |
| SC1200T5 | 25 | 36 | 0.5 | 1 |
| SC1300 | 30 | 36 | 1 | 3 |
| SC1300P15 | 8 | 37 | 1 | 10 |
| SC1300P | 12 | 36 | 1 | 10 |
| SC1400T5 | 25 | 37 | 0.5 | 0.5 |
| SC1500 | 25 | 39 | 1 | 3 |
| SC1500P15 | 8 | 39 | 1 | 10 |
| SC1500P | 12 | 39 | 1 | 10 |
| SC1600 | 25 | 40 | 1 | 3 |
| SC1600T | 25 | 40.5 | 0.3 | 0.5 |
| SC1700T7 | 20 | 44 | 0.3 | 0.5 |
| SC1800T5 | 25 | 43.5 | 0.3 | 0.5 |
| SC1800P15 | 8 | 43.5 | 0.5 | 10 |
| SC1800P8 | 12 |
| 1 | 10 |
| SC2000 | 25 | 44 | 0.5 | 1 |
| SC2000P10 | 12 | 45 | 0.5 | 10 |
| SC2000T5 | 22 | 44 | 0.3 | 0.5 |
| SC2100T5 | 22 | 44 | 0.3 | 0.5 |
| SC2200 | 15 | 44.5 | 0.3 | 5 |
| SC2200P10 | 15 | 46.5 | 0.3 | 10 |
|
|
|
|
|
| 1/2C800 | 50 | 27.6 | 1 | 3 |
| C2300低温LT | 20 | 63 | 0.5 | 1 |
| C2500F | 25 | 62.5 | 0.5 | 1 |
| C2500T | 25 | 63.6 | 0.3 | 0.5 |
| C2600T | 25 | 64.6 | 0.3 | 0.5 |
| C2800T | 25 | 67 | 0.3 | 0.5 |
| C3000F | 25 | 67 | 0.5 | 1 |
|
|
|
|
|
| 1/2D2500 | 40 | 68 | 0.5 | 1 |
| D2500 | 35 | 94 | 0.5 | 1 |
| D3000 | 30 |
| 0.5 | 1 |
| D4000 | 25 | 102 | 0.5 | 1 |
| D4200T | 25 | 103 | 0.3 | 0.5 |
| D4500 | 25 |
|
|
|
| D5000 | 18 | 119 | 0.3 | 3 |
| D5500T | 20 | 119 | 0.3 | 0.5 |
| D6000 | 20 |
| 0.5 | 1 |
| D6500F | 20 |
|
|
|
|
|
|
|
|
| F7000 | 22 | 178 | 0.3 | 3 |
| F7500T | 18 | 172.5 | 0.3 | 0.5 |
| F8000 | 18 |
| 0.3 | 0.5 |
| F8000T | 18 | 173.5 | 0.3 | 0.5 |
| F10000 | 18 |
|
|
|
For any more details, contact us please.
